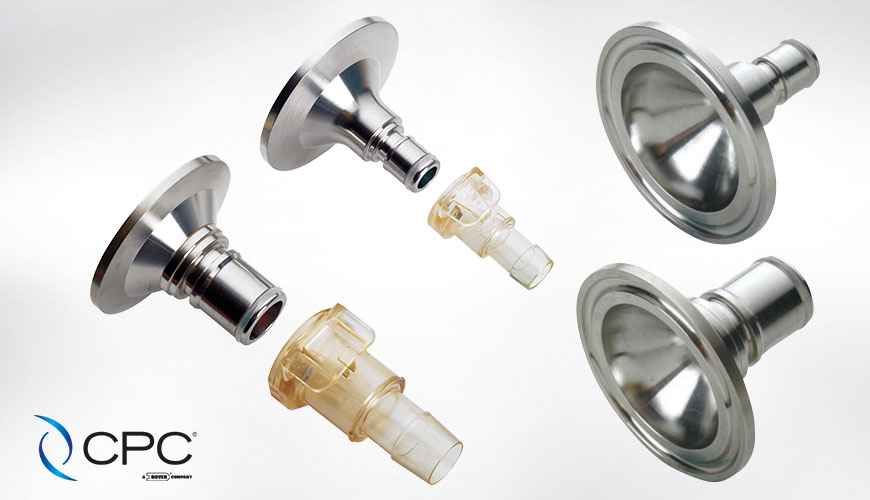

CPC’s SaniQuik connection
SaniQuik 連接產品
CPC SaniQuik?連接產品可解決這一問題：如何用單次使用部件連接您所使用的不銹鋼加工設備，使用三爪卡盤連接整體衛生型終端面至硬鉛錘系統，可便捷連接單次使用袋系統、歧管或者包含Colder單次使用接頭的管組。SaniQuik減少更換衛生墊片，確保飼養、種植或者抽樣應用過程的成本效益。CPC’s SaniQuik? connection answers the question of how to integrate single-use components with your existing stainless processing equipment. This integral sanitary termination attaches to hard-plumbed systems with tri-clover clamps. Once attached it permits quick and easy connection to single-use bag systems, manifolds or tube sets with Colder disposable coupling bodies.
特點：
3/4"到1-1/2"衛生標準端頭兼容MPC和MPX
一體耦合適配器無BSE/TSE的材料
優點
用衛生墊片和三爪卡具連接至硬鉛錘系統
可在單次使用袋和管組上便捷連接工業標準塑料接頭
斷開接頭以減少衛生墊片更換
符合ADCF要求
規格
壓力：真空至60psi，4.14bar
溫度：-40oF到300oF（-40oC到149oC）
材料：
主要部件：316L不銹鋼
O型圈：硅樹脂（透明），鉑金固化，USPVI等級認證，ADCF
滅菌：高壓滅菌器
若未特別注明，所有測量數據單位均為英制（毫米），管線必須符合規定的內外徑尺寸。
詳細的產品參數可下載中文選型資料-參閱第82頁產品選型資料。
Colder SaniQuik,CPC
SaniQuik
Home Industries Biopharma SaniQuik
Features & Benefits
Disconnecting coupling reduces sanitary gasket replacement
Features Benefits
3/4" and 1-1/2" sanitary terminations Connect to hard plumbed systems with sanitary standard gaskets and tri-clover clamps
Compatible with MPC & MPX Series Quick and easy connections to industry standard plastic couplings on single-use bag and tube sets
Integral coupling adaptor Disconnecting coupling reduces sanitary gasket replacement
BSE/TSE free materials Meet ADCF requirements
Specifications
Pressure: Vacuum to 60 psi, 4.14 bar
Temperature: -40°F to 300°F (-40°C to 149°C)
Sterilization: Autoclave
Materials:
Main components: 316L
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCFCompatible with MPC and MPX
Cv Value
straight-through Cv~14.2 (204.60) max
Legend
Legend
Products
Inserts
3/4 Sanitary Fitting Non-Valved Coupling Insert
SQCC221212M
3/4 Sanitary Fitting Non-Valved Coupling Insert
1-1/2 Sanitary Fitting Non-Valved Coupling Insert
SQCC222424M
1-1/2 Sanitary Fitting Non-Valved Coupling Insert
3/4 Sanitary Fitting Non-Valved Coupling Insert
SQCX221212M
3/4 Sanitary Fitting Non-Valved Coupling Insert
1-1/2 Sanitary Non-Valved Coupling Insert, .86 Bore
SQCX222416M
1-1/2 Sanitary Non-Valved Coupling Insert, .86 Bore
1-1/2 Sanitary Fitting Non-Valved Coupling Insert
SQCX222424M
1-1/2 Sanitary Fitting Non-Valved Coupling Insert
O-Rings and Seals
SaniQuik USP Class VI, ADCF Silicone O-Ring
2260100
SaniQuik USP Class VI, ADCF Silicone O-Ring
SaniQuik USP Class VI, ADCF Silicone O-Ring
2260200
SaniQuik USP Class VI, ADCF Silicone O-Ring |
