CPC Sixtube六管道系列接頭 美國CPC塑料快速接頭

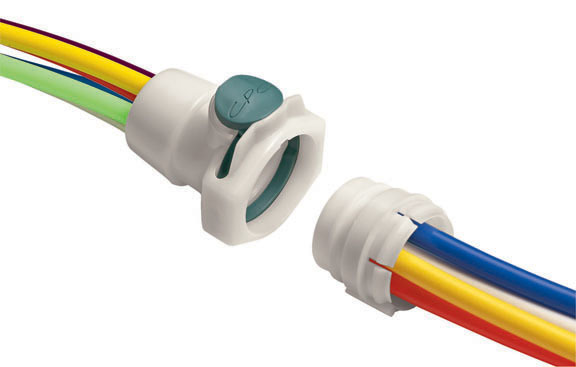

CPC Sixtube Coupling 六管道系列接頭

詳細信息 ：

扣板式安裝設計，接斷靈活、方便； 在有閥門或無閥門的情況下，均可連接和斷開六條單 獨的管線。 CPC Sixtube六管道系列接頭為多六個單獨的流體管線提供了一種使用方便的快速接頭。Sixtube的任何一側都有閥門，大程度地提高了設計靈活性。特點是有一個Colder指鎖，只需按一下按鈕Sixtube即可斷開多六條管線�？劢邮桨灏惭b設計使設備面板前面的外形很低。3/32"流量TwinTube雙管道系列接頭為兩個單獨的流體管線提供了一種使用方便的快速接頭。無閥門的TwinTube在一個接頭內保留了兩個單獨的流道。特點是有一個Colder指鎖，只需按一下按鈕TwinTube即可斷開兩條管線。板安裝設計使設備面板前面的外形很低。The Sixtube coupling provides one easy-to-use quick disconnect for up to six separate fluid lines. The Sixtube is available with valves on either side for maximum design flexibility. Featuring the CPC thumb latch, the Sixtube can disconnect up to six lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.

CPC Sixtube Coupling 六管道系列接頭
CPC Sixtube Coupling PDF Catalog六管道系列接頭技術資料下載

CPC Sixtube Coupling 六管道系列接頭特點

六條/兩條管線連接
單獨流道
Sixtube插嘴部分與接頭母座采用鍵聯接
接頭可自由轉動（僅限雙管路）
Colder指鎖


CPC Sixtube Coupling 六管道系列接頭優點

操作快速、高效
一個接頭內并存壓力和/或真空部分
可保證線路方位正確
防止管道扭結
可單手連接和斷開


CPC Sixtube Coupling 六管道系列接頭的規格

壓力：真空至100psi,6.9bar（每條管線）
溫度：
聚甲醛配件插嘴：-40°F至180°F(-40°C至82°C)
聚丙烯配件插嘴：32°F至180°F(0°C至82°C)
材料：
主要元件：聚甲醛
閥：聚甲醛
配件插嘴：聚甲醛或聚丙烯
指鎖：聚甲醛
閥簧：316不銹鋼
O型圈：聚甲醛配合丁腈橡膠，聚丙烯配合三
元乙丙橡膠
顏色：天然白，帶淺綠色指鎖
管道尺寸：1/16"至1/8"ID,1.6mm至3.2mmID

注意：訂購Sixtube組件時一定要小心。母座和插嘴部分都有公母接頭，一定要對應上。若有任何疑問或如需幫助請與029-86474991聯系

CPC Sixtube Coupling 六管道系列接頭 醫療體外診斷設備 Sixtube
產品 Bodies

SX17 SixTube Coupling Body Without Fittings	SXF1701 Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies	SXF170112 Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies	SXF1702 Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF170212 Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies	SXF17M3 Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies	SXFD1701 Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts	SXFD1702 Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts
SXFD17M3 Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts	SXM1701 Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts	SXM170112 Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts	SXM1702 Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM170212 Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts	SXM17M3 Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts	Caps & Plugs Sixtube Pressure Plug TMPMWHT

Inserts

SX42 SixTube Coupling Insert Without Fittings	SXF4201 Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies	SXF420112 Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies	SXF4202 Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF420212 Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies	SXF42M3 Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies	SXFD4201 Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies	SXFD4202 Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXFD42M3 Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies	SXM4201 Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts	SXM420112 Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts	SXM4202 Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM420212 Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts	SXM42M3 Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts

CPC Sixtube Coupling 六管道系列接頭

SixTube Coupling Body Without Fittings
SX17
SixTube Coupling Body Without Fittings

Quick ViewNon-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF1701
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF170112
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF1702
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF170212
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
SXF17M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies

Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts
SXFD1701
Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts

Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts
SXFD1702
Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts

Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts
SXFD17M3
Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts

Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM1701
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts

Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM170112
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts

Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM1702
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM170212
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts
SXM17M3
Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts

Caps & Plugs

Sixtube Pressure Plug
TMPMWHT
Sixtube Pressure Plug

Inserts

SixTube Coupling Insert Without Fittings
SX42
SixTube Coupling Insert Without Fittings

Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF4201
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF420112
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF4202
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF420212
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXF42M3
Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies

Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXFD4201
Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies

Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXFD4202
Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies

Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXFD42M3
Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM4201
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts

Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM420112
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts

Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM4202
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM420212
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
SXM42M3
Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
